32mm Roller Blind Mechanism Kit – Control, Brackets & Chain

Replacement 32mm Roller Blind Mechanism Kit

Repair your roller blind without replacing the complete blind.

This replacement mechanism kit contains the operating components required for a compatible 32mm roller-blind tube. It includes a chain-operated control mechanism, idle-end pin and a pair of durable metal fixing brackets.

Ideal for repairing a blind with a damaged, worn or stiff control mechanism.

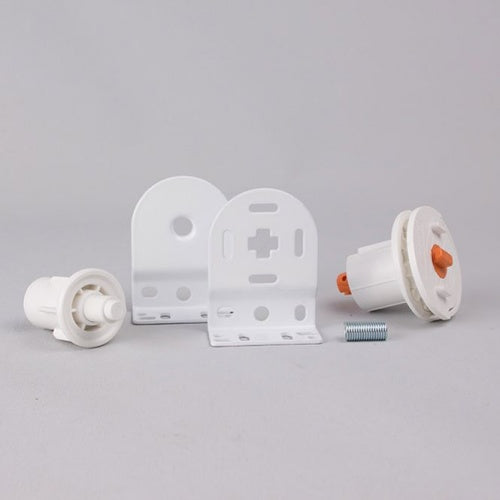

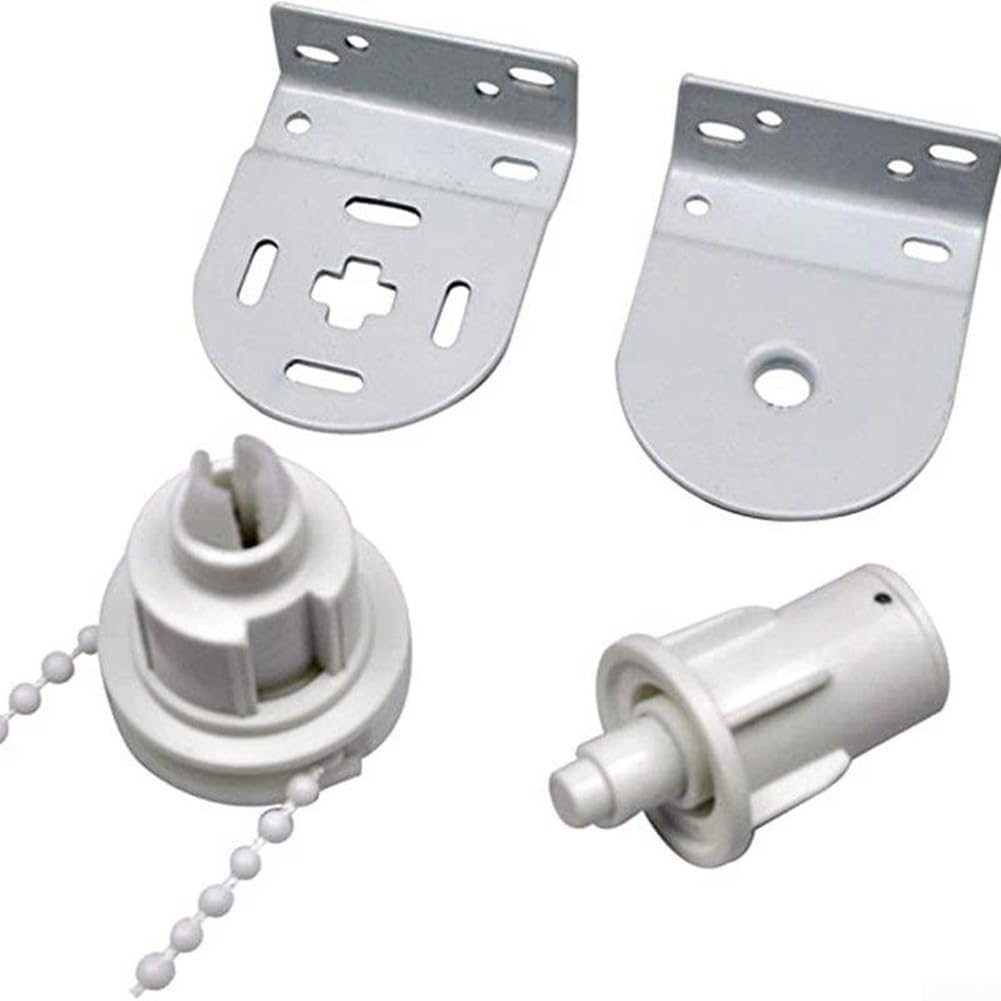

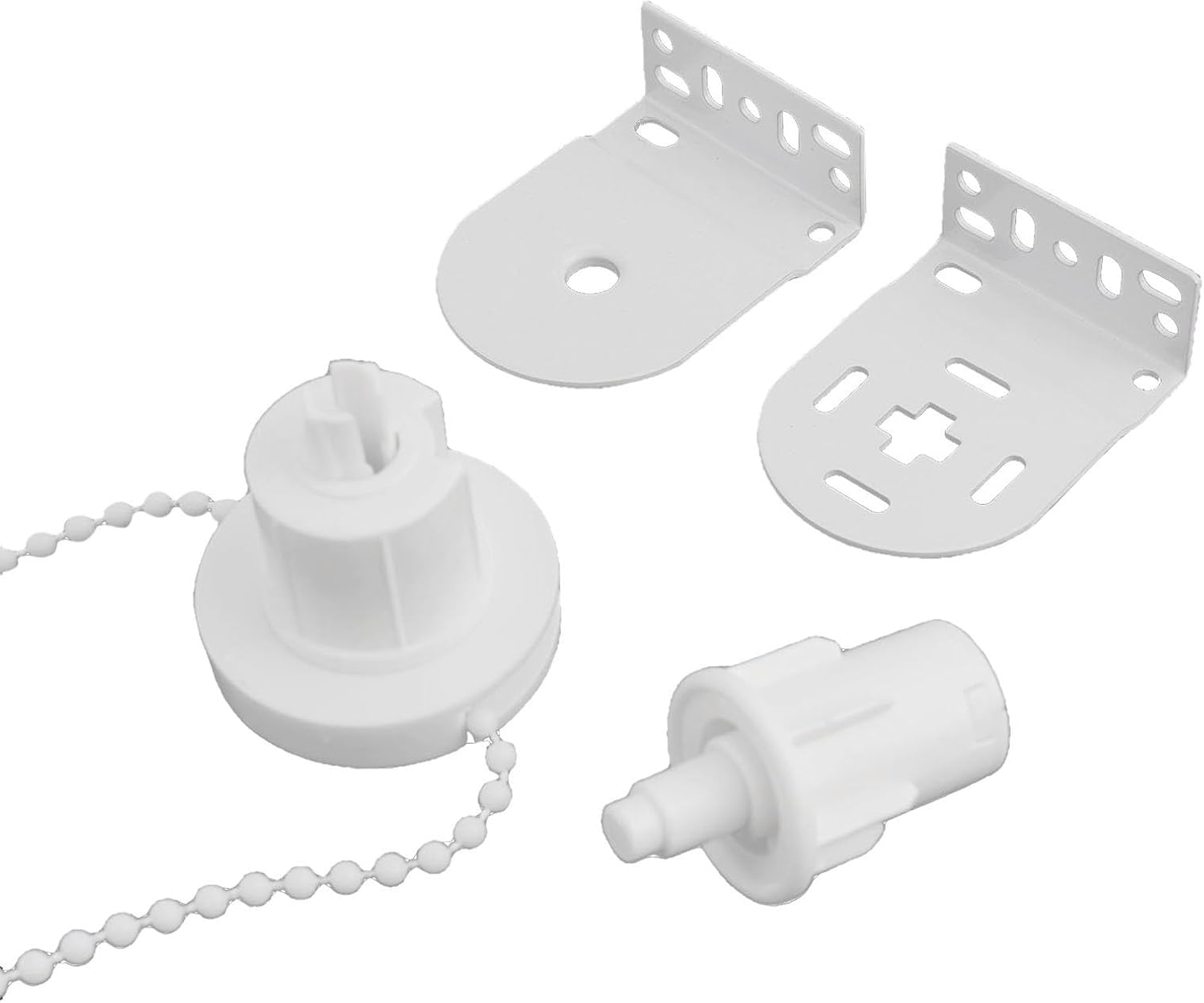

Kit includes

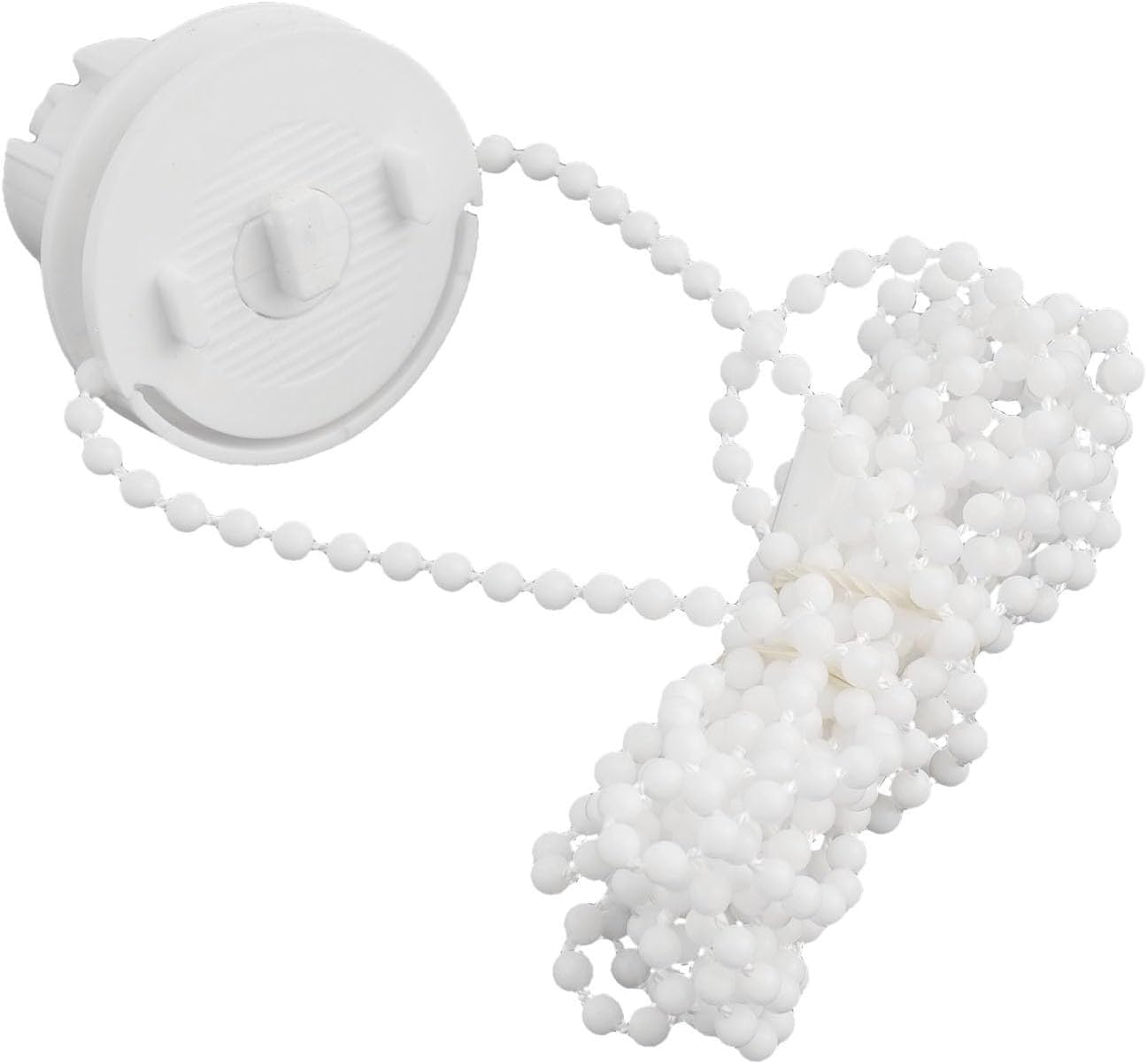

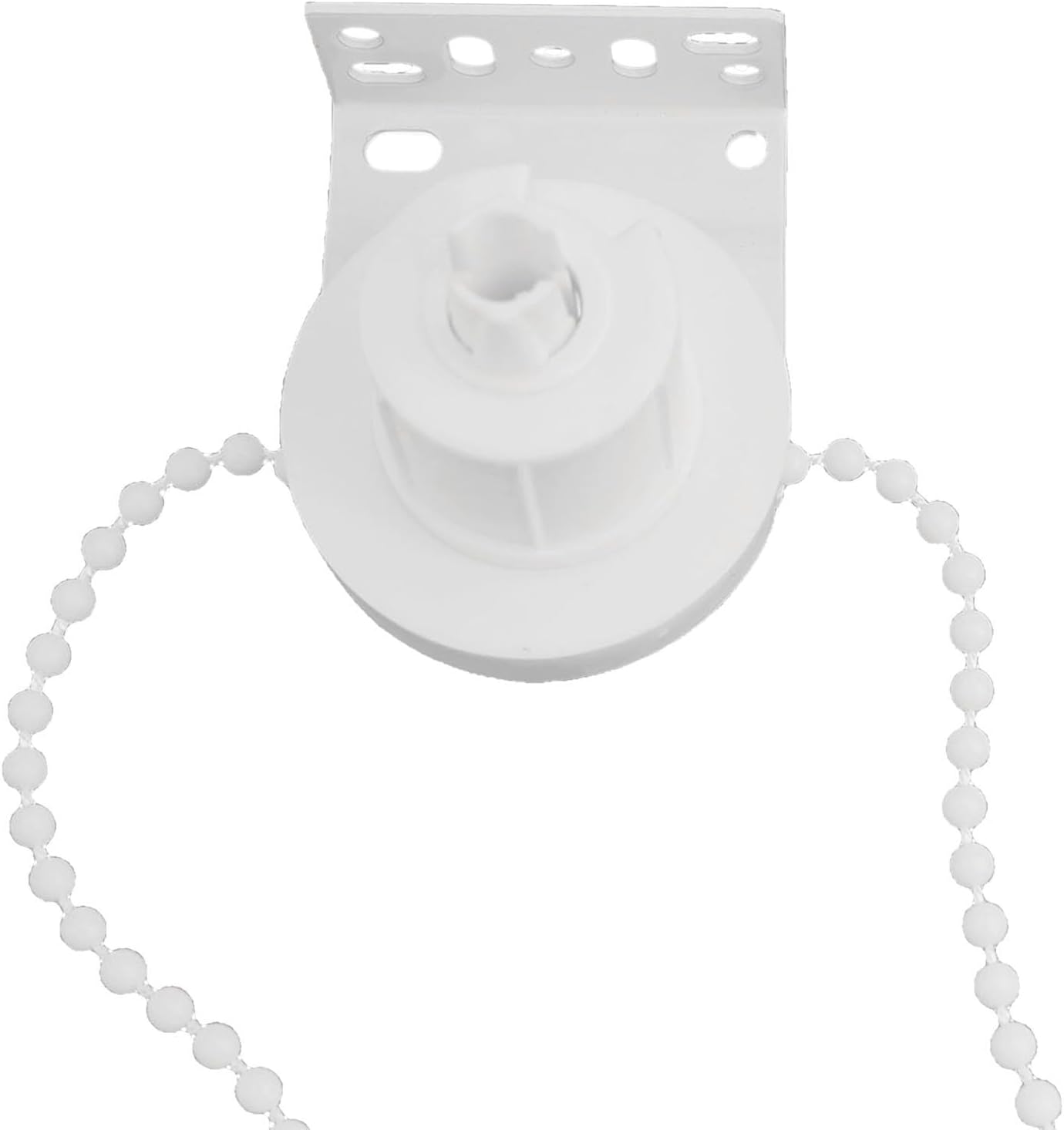

• 1 × chain-operated control mechanism

• 1 × idle-end pin

• 2 × metal fixing brackets

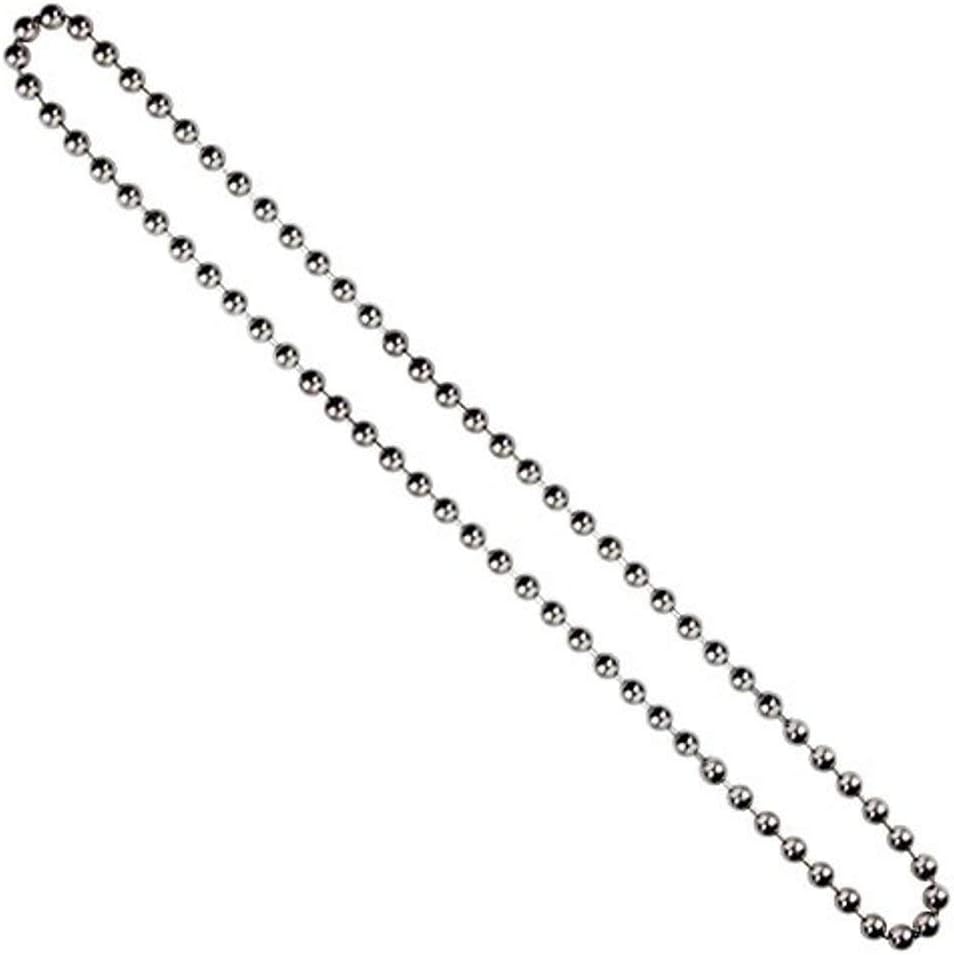

• 1 × operating chain

Fixing screws and wall plugs are not included.

Product features

• Designed for compatible 32mm roller-blind tubes

• Suitable for top, face or recess fixing

• White components for a discreet finish

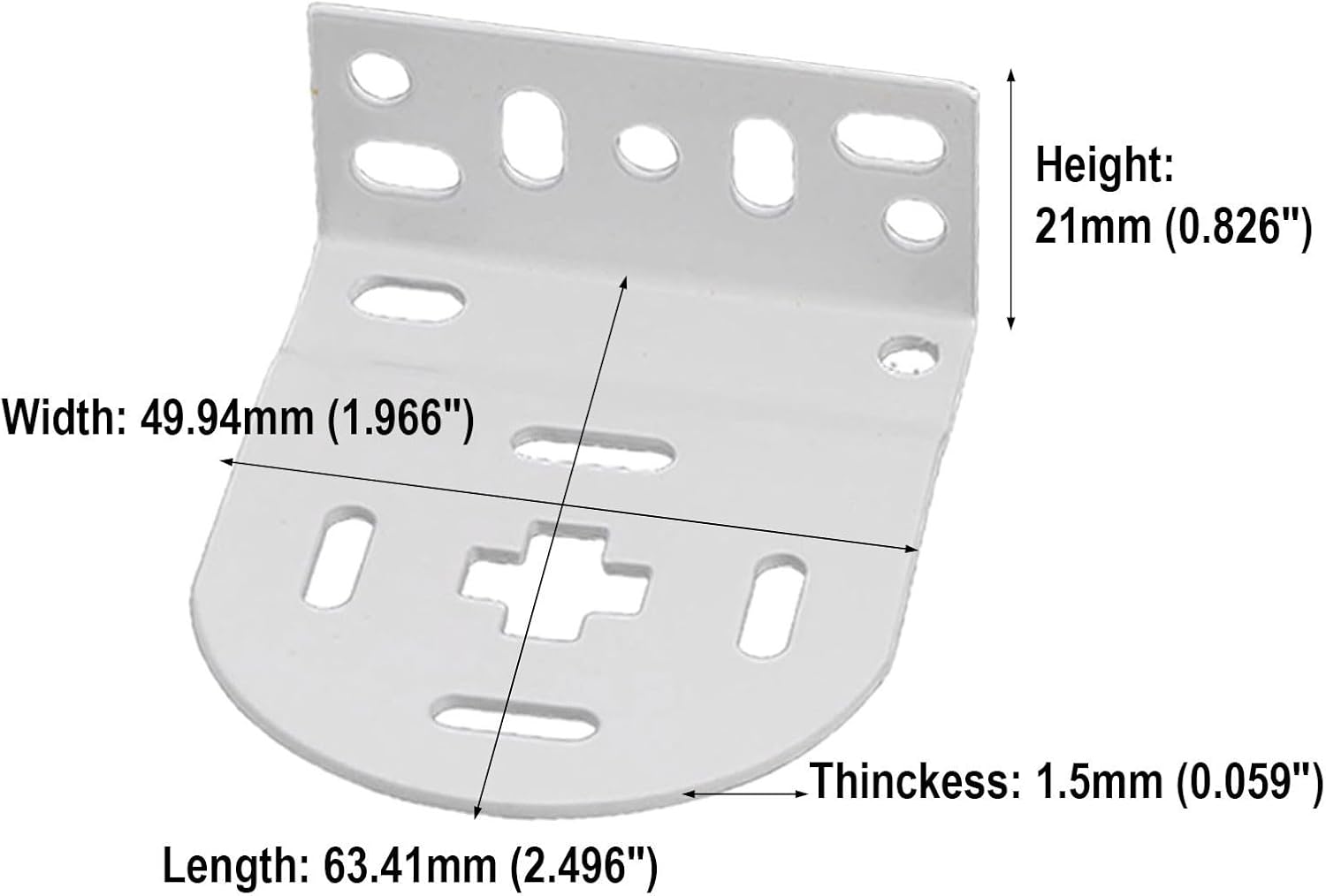

• Strong metal mounting brackets

• Suitable for replacement and repair projects

• Easy to install into a compatible existing roller tube

Compatibility

This mechanism is designed for a compatible 32mm roller-blind tube.

Please measure the outside diameter of your existing tube before ordering. Tube sizes and internal profiles can vary between manufacturers, so a 32mm outside measurement alone does not always guarantee compatibility.

This kit is intended for roller blinds only. It is not suitable for vertical blinds.

If you are unsure, send us:

• A photograph of the end of your roller tube

• A photograph of your existing mechanism

• The outside diameter of the tube

We will be happy to help you check before ordering.

How to measure your roller tube

1. Remove the blind from its brackets.

2. Carefully remove the existing mechanism.

3. Measure straight across the outside of the metal tube.

4. Check that the tube measures approximately 32mm in diameter.

5. Compare the tube’s internal profile with the mechanism shown in our photographs.

Do not measure around the circumference of the tube.

Installation

Insert the control mechanism into one end of the roller tube and the idle-end pin into the opposite end. Install the brackets securely in the required top-fix or face-fix position, then place the assembled blind into the brackets.

The control mechanism can normally be positioned on either the left or right side of the blind.

Always ensure the brackets are securely attached to a suitable surface.

Child-safety information

Looped blind chains must be securely restrained and kept out of the reach of children.

Fit an appropriate chain-tensioning safety device and follow the blind manufacturer’s installation instructions. If a suitable safety device is not already fitted, one must be purchased separately.

Please note

Compatibility is the customer’s responsibility. Examine the product photographs and measure your tube before ordering. If your existing system differs from the parts shown, please contact us for assistance before purchasing.
